The Aircraft

Description:

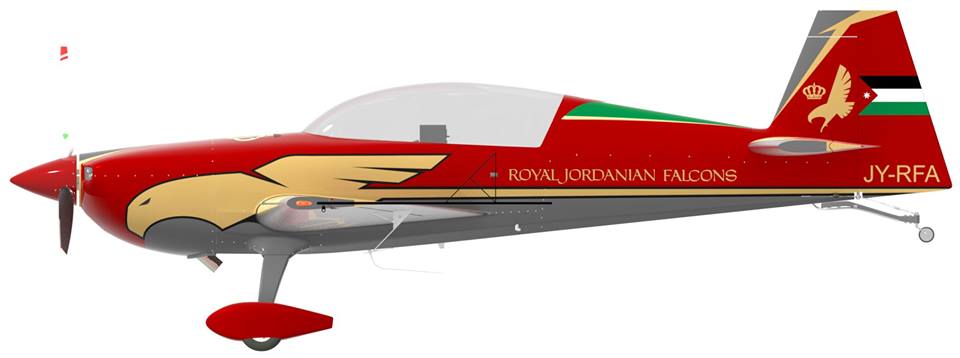

The following description refers to Extra 330LX aircraft in general.

Manufacturing:
The airframe is built of tig-welded steel-tube construction. Wings, rudder and landing gear are manufactured of composite material. The aircraft is a two seater with the rear seat instrumented for pilot in command. The maximum “G” limits are +/- 10 Gs for aerobatic flight.

Specification of Class:
The aircraft is certified in normal and aerobatic category under EASA A.362.

Manufacturer:
Manufacturer EXTRA Flugzeugproduktions-und Vetriebs- GmbH,
Flugplatz Dinslaken46569 Hunxe, Federal Republic of Germany.

Technical Data:

Dimentions:
Length: 7.20 m (23.06ft)
Height: 2.62 m (8.60ft)
Wing span: 8.00 m (26.25 ft)

ENGINE:
Manufacturer Textron-Lycoming.
Type: Lycoming AEIO-580-B1A
Rated Power: 315 HP@2700 RPM
286 HP@2400 RPM

PROPELLER:
Manufacturer MT-Propeller Entwicklung GmbH,
Type: MTV-14-B-C/C 190-130 4-Bladed Propeller

AIRSPEED LIMITATIONS:
VNE 219 knots
VNO (Normal Category) 138 knots
VNO (Acro. Category) 154 knots
VA (Normal Category) 138 knots
VA (Acro. Category) 154 knots
